Custom Jigs and Fixtures – Precision Work Holding Solutions by Vyokta

Introduction

Vyokta Hi-Tech Automation designs and manufactures high-precision jigs and fixtures that are essential for modern machining, inspection, assembly, and welding operations. Built to ensure part accuracy, reduce cycle times, and increase production consistency, our fixtures are developed using CAD/CAM tools and validated for accuracy.

Our offerings include work holding fixtures, gear hobbing fixtures, and application-specific fixtures like tapping, welding, milling, boring, and indexing fixtures.

Key Features

High-precision and rigid construction

Customizable for any component geometry

Quick-clamping and zero-point setups available

Designed using CAD/CAM and validated with FEA (on request)

Built for CNC, VMC, inspection, and robotic applications

Modular fixture designs for multiple configurations

Types of Jigs and Fixtures We Offer

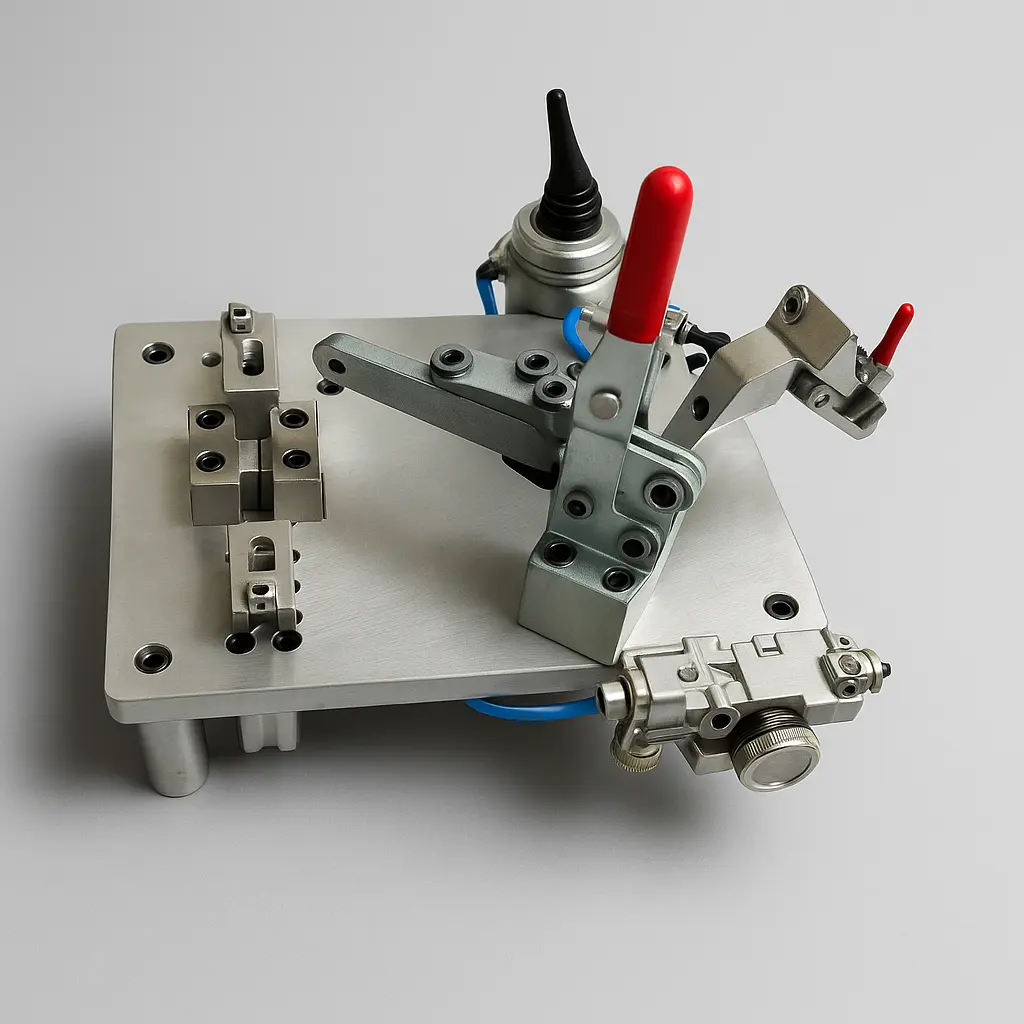

1. Work Holding Fixture

These fixtures secure the workpiece rigidly during machining, ensuring minimal vibration and accurate results. Vyokta’s work holding fixtures are suitable for CNC turning, milling, and drilling operations, delivering high repeatability even in mass production.

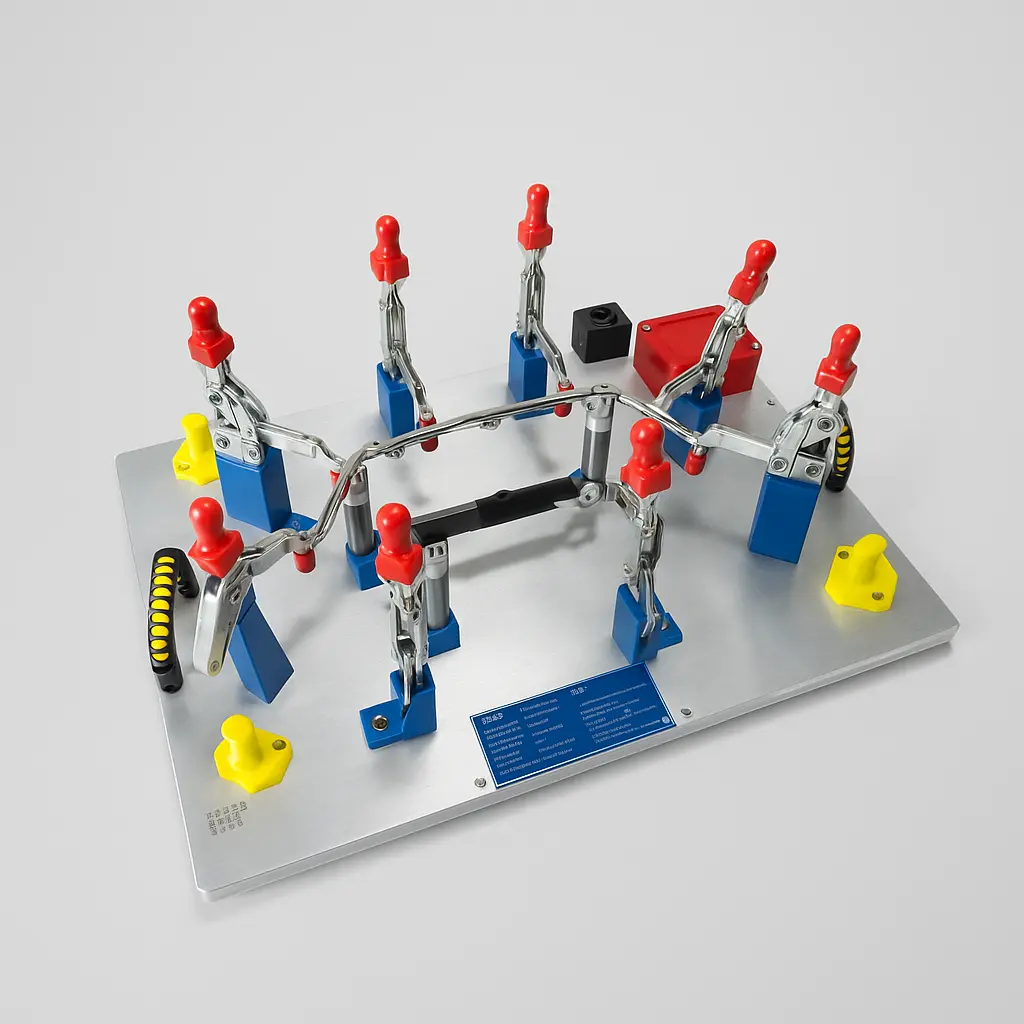

5. Welding Fixture

Designed to hold components in fixed alignment during welding, these fixtures prevent warping and distortion. Vyokta’s welding fixtures are built with high heat resistance and ergonomic access to weld zones, ideal for structural and automotive assemblies.

2. Gear Hobbing Fixture

Vyokta’s gear hobbing fixtures are used to securely mount and align gear blanks for hobbing operations. These fixtures provide precision indexing and concentricity required for accurate gear tooth cutting.

6. Boring Fixture

Boring fixtures support accurate enlargement of pre-drilled holes. Vyokta offers boring jigs with adjustable supports and hardened guides to maintain alignment during internal machining operations.

3. Indexing Fixture

Indexing fixtures are used where a workpiece needs to be rotated or repositioned at fixed intervals. Vyokta provides both manual and automatic indexing fixtures for drilling, slotting, and gear cutting operations.

7. Tapping Fixture

Tapping fixtures are used to hold and guide the tap perpendicular to the work surface, ensuring consistent thread depth and alignment. Our fixtures reduce tap breakage and increase productivity in multi-part tapping processes.

4. Grinding Fixture

Grinding fixtures are precision holders used to guide and support parts during surface or cylindrical grinding. These fixtures help maintain dimensional accuracy, flatness, and finish in high-tolerance parts.

8. Milling Fixture

Vyokta’s milling fixtures are designed for rigid work holding during multi-axis milling operations. They feature modular clamping and datum references to allow consistent, accurate machining of complex profiles.

Looking for high-accuracy, durable jigs and fixtures?

Vyokta delivers custom fixture solutions that reduce cycle time and increase accuracy.
Get in touch now for a consultation or quote.

Frequently Asked Questions (FAQ)

Do you support reverse engineering of existing jigs or fixtures?

Yes, we can recreate or enhance existing fixtures based on samples or old drawings.

Can one fixture be designed to support multiple operations?

Absolutely. We offer modular and hybrid fixtures for flexible usage.

Are your fixtures compatible with automated clamping and robotic loading?

Yes, our designs support pneumatic, hydraulic, and robotic integration as needed.
